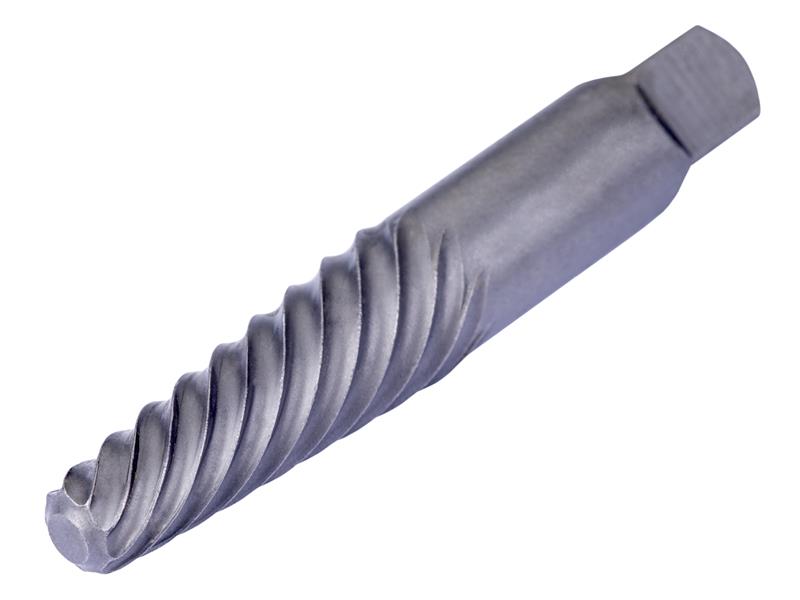

Dormer M9003 Screw Extractor M8-M12
£5.66 Including Tax
( £4.72 Excluding Tax )
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
3 in stock
Description
The Dormer M900 Screw Extractors can be used counter-clockwise to remove broken right-handed bolts & screws from threaded holes without damaging threads. It’s necessary to drill a guide hole of proper size before using the extractor.
1 x Dormer M9003 Screw Extractor M8-M12
Specifications:
Bolt Size: M8 – M12
Drill Size for Low/Medium Tensile Screws: 4mm
Drill Size for High Tensile Screws (+75 tons/sq.inch): 4.2mm
Bolt Size Imperial: 5/16 – 7/16in
Drill Size for Low/Medium Tensile Screws: 5/32in
Drill Size for High Tensile Screws (+75 tons/sq.inch): 11/64in
Cutting Diameter Step: 3.18mm
Cutting Diameter Second Cutting Step (DC_2): 6.4mm
Clamping Width (WSC): 4.8mm
Clamping Length (LSC): 7.5mm
Overall Length (OAL): 68.7mm
Net Weight: 14g.
Additional information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 2.9 × 2.9 × 12.5 cm |
